RenogyMonocrystalline Solar Panel

Q: What else will i need with Complete Solar Panel Kit 200W Mono: 2pc 100W Solar Panels+20' Adapter Kit+P beside battery and solar panal extension cable?

If this is an isolated unit you will need batteries and the proper cables. I daisy chained two 12v car batteries (720 CCA) together. I used 12 gage stranded wire (positive and negative) designed for car audio and soldiered the ends. I squared the ends soldered ends so they would fit properly into the solar charge controller. If you want AC power as I did I ran two more 12 gage wires (positive and negative) for the inverter. I hooked up a 1200 watt power inverter with 12v USB and other power options. This is an isolated 120v AC system and will run several lights, TV, radio, etc.

Q: Hi I'm looking for the same but off grid, is this off grid or could I get one of the same off grid?

This IS an off-grid system. I have never been on-grid at my present location. I run 24/7 with 4 of these kits (8 panels), feeding a set of 4 panels through the included 30-amp charger to recharge 3 large deep-cycle batteries each set (6 batteries altogether). The batteries feed an 800-watt Cobra inverter (also from Amazon) to provide all the power I need. For high-drawing electrical shop tools, I use a 3500-watt LPG generator. See my video series at my website, DroidPals dot com.

Q: How many batteries would i need for this kit ? I will be using on my off-grid cabin which is a 12x24 . thanks

Complicated question. You need to figure out how much power your appliance use and how long you plan to use them each day. I am using 4 6 volt golf cart battery's. All together I have 464 amp hours. Batteries in parallel and in series. Do not use regular car battery. There is a formula out there, i don't know it.

Q: what size is each panel?

1195 mm x 541 mm or 47 inches x 21.3 inches

4.6/5

Product ID: 384154877

Secure Transaction

Details

Brand
Renogy
Material
Silicon
Product dimensions
106.2L x 53.1W
Item weight
32.61 Pounds
Efficiency
22%

⚡30% more efficient

🌞21% cell efficiency

🌡️-40°F to 185°F

Frequently Bought Together

Renogy 200 Watt 12 Volt Monocrystalline Solar Panel Starter Kit with 2 Pcs 100W Solar Panel and 30A PWM Charge Controller for RV, Boats, Trailer, Camper, Marine ,Off-Grid System

Link Solar Weatherproof ABS Solar Double Cable Entry Gland for All Cable Types 2mm² to 6mm² for Solar Project on Rv, Campervan, Boat

Dicor 501LSW-1 HAPS-Free Self-Leveling Lap Sealant for horizontal surfaces - 10.3 Oz, White, Secure, Ideal for RV Roofing, Maintenance, Repair, Appliance Application

Description

🌍 Go Green, Live Clean!

BUILT TO LAST - Anodized aluminum frame for durability.
EXPAND YOUR ENERGY - Easily scale up to 400W!
ALL WEATHER PERFORMANCE - Operates in extreme temperatures!
HARNESS THE SUNS POWER - Maximize energy with MPPT technology!
EFFICIENT ENERGY TRANSFER - 97% peak efficiency for optimal performance.

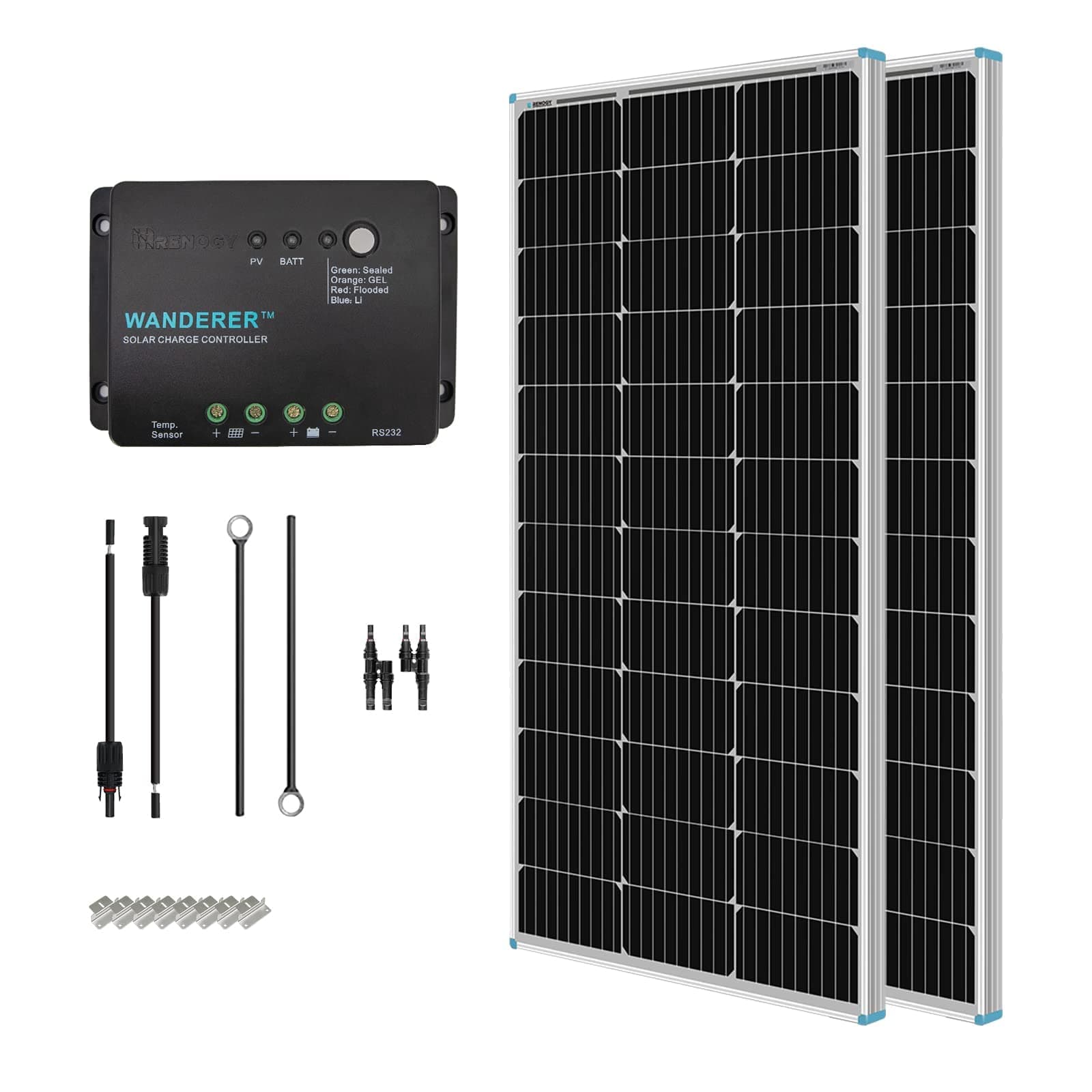

The Renogy 200W Monocrystalline Solar Panel Starter Kit features a 20A MPPT charge controller that enhances energy efficiency by up to 30% compared to traditional PWM systems. With a robust anodized aluminum frame and high-performance monocrystalline cells, this kit is designed for durability and optimal energy production in a variety of weather conditions. Expandable up to 400W, it’s perfect for off-grid systems.

Specifications

Color	,Off-Grid System
Size	MPPT 20A Controller
Style	Cables+Mounts
connector-type	MC4
Material Type	Monocrystalline Silicon
Number of Items	1
Power Source	Solar Powered
Features	MPPT charge controller
Wattage	200 watts
Included Components	cable
Batteries Included?	No
Brand	Renogy
Manufacturer	Renogy
Item model number	200W 12V Solar Panel Starter Kit,
Product Dimensions	106.17 x 53.09 x 3.51 cm; 14.79 kg
ASIN	B06VYJ8JXH

Have a Question? See What Others Asked

What else will i need with Complete Solar Panel Kit 200W Mono: 2pc 100W Solar Panels+20' Adapter Kit+P beside battery and solar panal extension cable?

Hi I'm looking for the same but off grid, is this off grid or could I get one of the same off grid?

How many batteries would i need for this kit ? I will be using on my off-grid cabin which is a 12x24 . thanks

what size is each panel?
