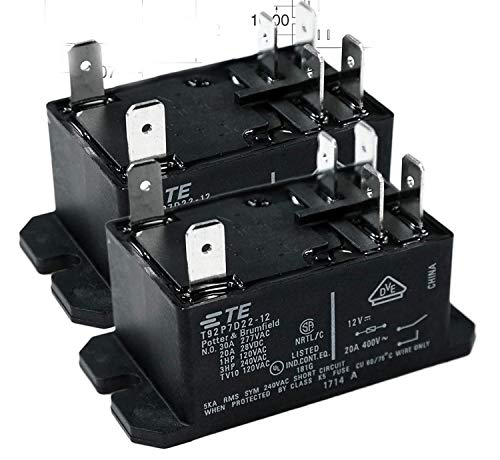

The TE Connectivity Potter & Brumfield T92P7D22-12 is a high-performance DPST-NO power relay featuring a 12VDC coil and a robust 30A contact current rating. Designed for panel mounting with quick connect terminals and durable silver cadmium oxide contacts, this compact flange relay delivers reliable switching for industrial and scientific applications. Sold in packs of two, it offers an affordable, professional-grade solution trusted by technicians and engineers alike.
| ASIN | B07K2QZ97Z |
| Best Sellers Rank | #66,314 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #46 in Electromechanical Relays |
| Brand | DazzyD |
| Coil Resistance | 86 Ohms |
| Coil Voltage | 12 Volts |
| Connector Type | Quick Connect |
| Contact Current Rating | 30 Amps |
| Contact Material | Silver Cadmium Oxide |
| Contact Type | Normally Open |
| Current Rating | 30 Amps |
| Date First Available | June 6, 2017 |
| Is Discontinued By Manufacturer | No |
| Item Weight | 5.9 ounces |
| Item model number | T92P7D22-12 ( Pack of 2) |
| Manufacturer | TE CONNECTIVITY & BRUMFIELD |
| Maximum Switching Current | 30 Amps |
| Maximum Switching Voltage | 12 Volts |
| Mounting Type | Flange Mount |
| Number of Terminals | 2 |
| Operation Mode | Manual |
| Package Dimensions | 3.19 x 2.87 x 1.61 inches |
| Wattage | 1.7 watts |
D**R
As described
Bought these for standby in case I need them. Because of the price, it was an easy decision and I already used one. Works well.
S**N
great part swap
I needed to replace our relays on a paragon kiln. The Skutt cost is 70ish each, these are a great replacement at much lower cost.
L**Y
Community college Skutt kiln km 1027
Why did you pick this product vs others?: Successfully used in a Skutt kiln km-1027 at community college.
K**A
Excellent price
I replaced 3 in my Skutt kiln. Way cheaper that Skutt sells them for and it is the same exact product.
K**S
Outstanding
Outstanding
T**E
Kiln relay
Direct replacement for my kiln. Works great
J**N
Sometimes 1 pole doesn’t make
I bought these to engage my dump trailer pump and valves, but occasionally it only engages the pump but not the valve and oil overflows the hydraulic tank instead of going back to the other side of the cylinder.
P**N
1 Bad, 1 Good...For Now
Title says it all: 1 Bad, 1 Good...For Now. I guess they sell a 2 pack because they are not confident each one will work! I will buy a much higher quality relay in the future. Be aware.
D**G
Bluebird kiln, this fixed 'er up perfectly!
S**B
Used to replace a failed relay on a pottery kiln. Worked exactly as it should. Easy to replace.
