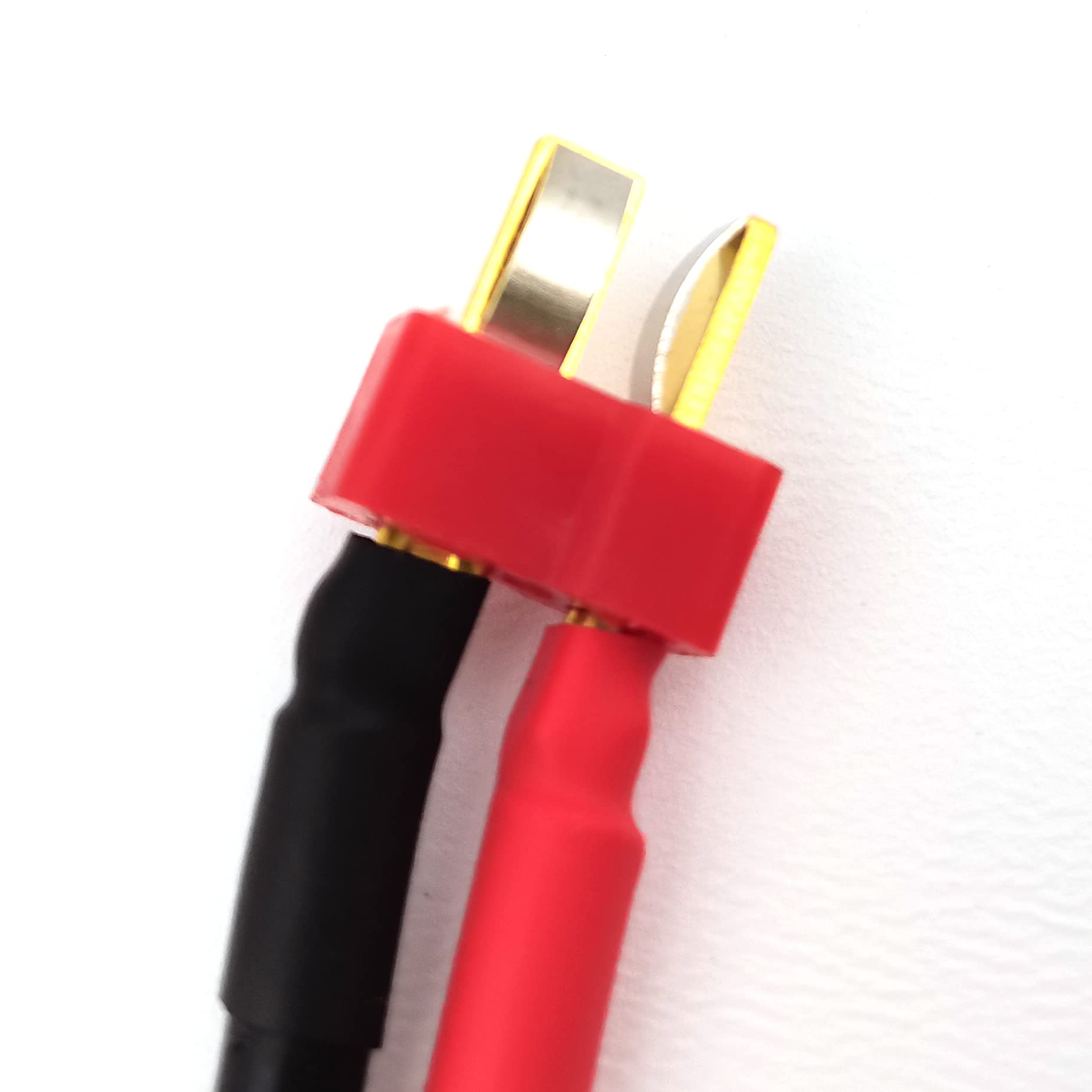

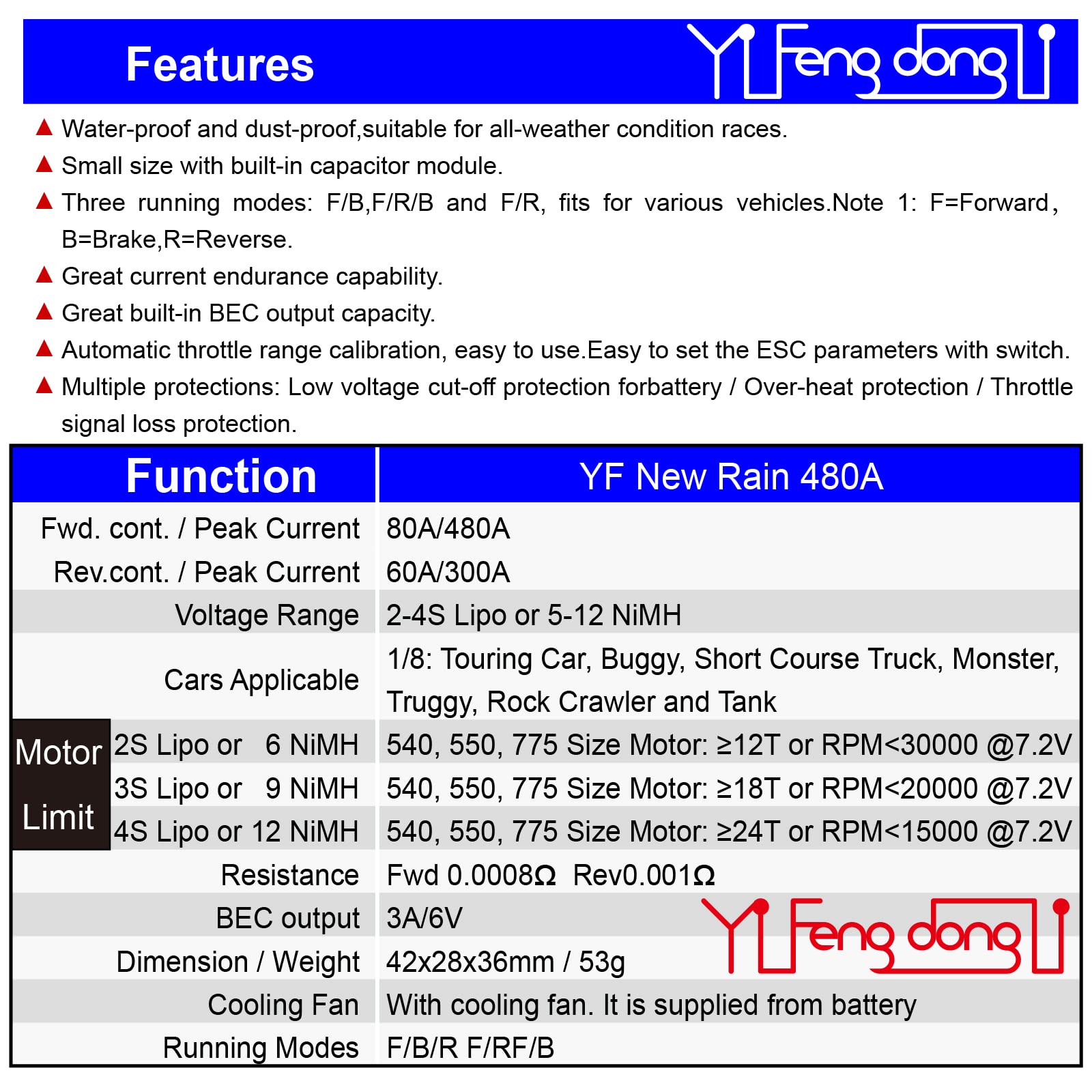

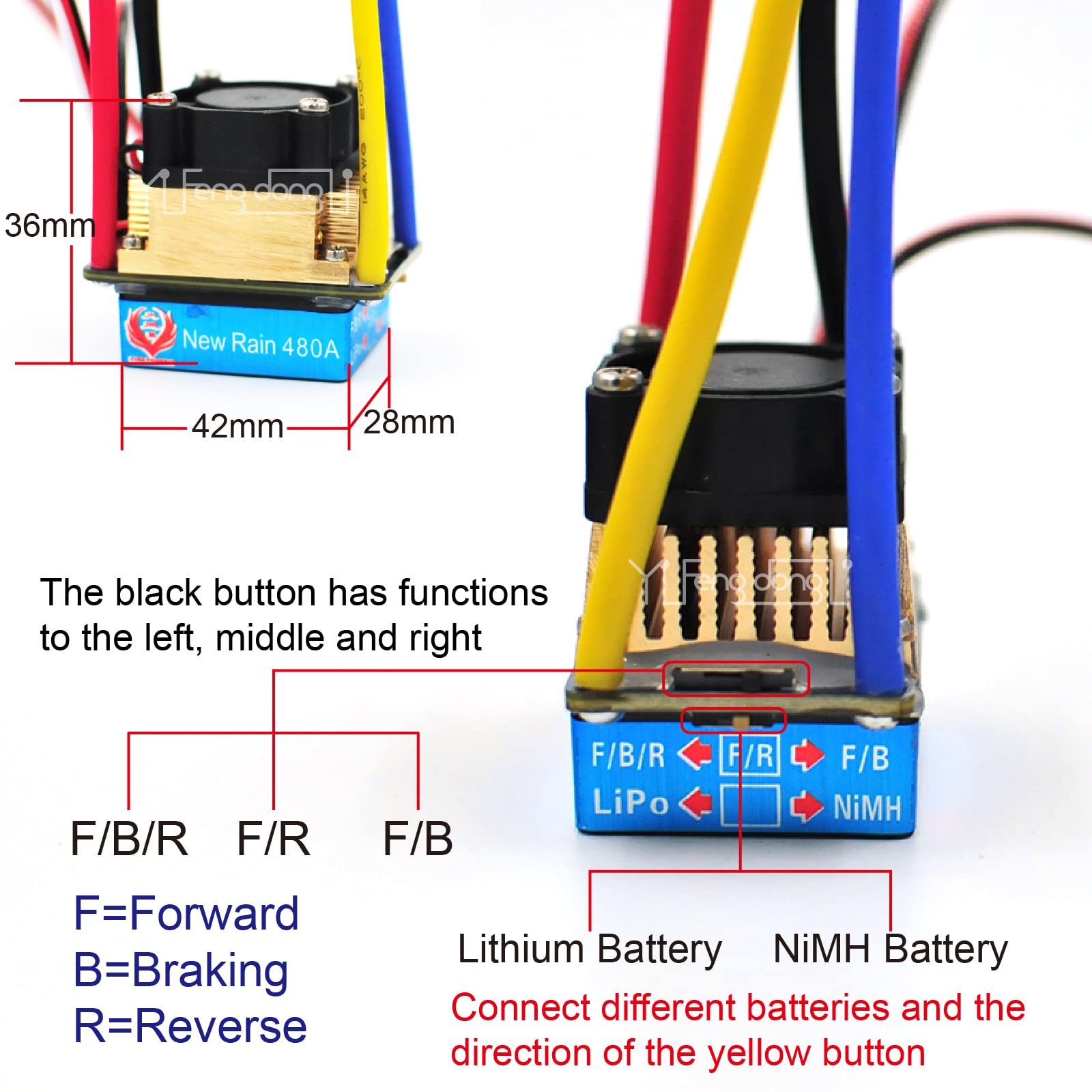

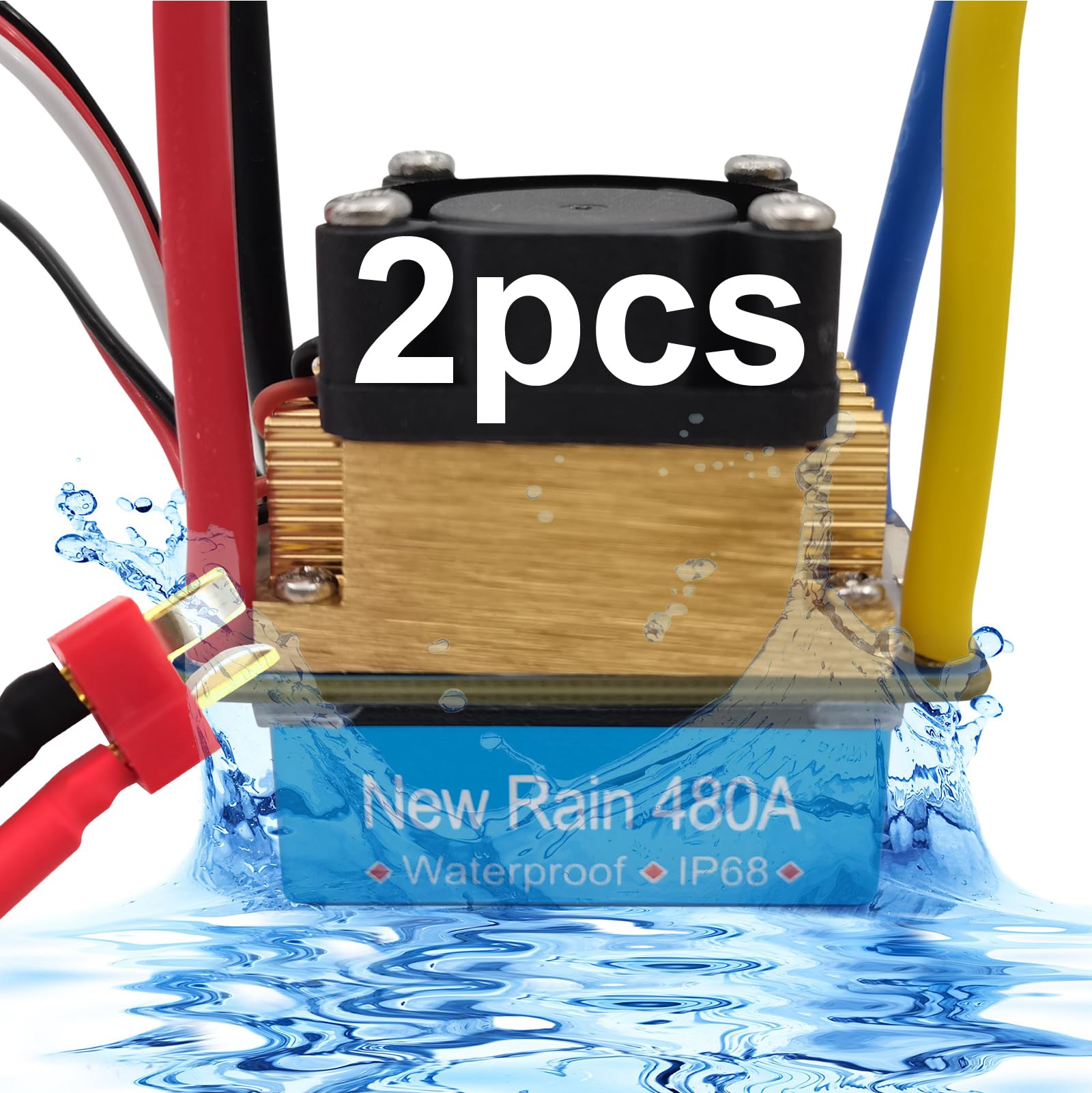

The power interface of this ESC is T-PLUS. 480A waterproof brush ESC speed controller with 5V / 3A BEC, suitable for 1 / 10 RC tracked scx10 D90 traxxas Tamiya HSP RC car function: bulit has built-in 5V / 3A BEC 480A waterproof ESC, with cooling fan ESC, automatic throttle range calibration, easy to use. The three operating modes of this ESC: F / B / R, f / B and F / R (F = forward, B = braking and R = reverse) are applicable to various vehicles. Specification: constant current: 60A peak current: 480A power supply: 2-4s LiPo battery, 5-9 NiMH battery BEC: 5V / 3A weight: 53g item size: 42 * 28 * 36mm packing list: 1 * RC model 480A ESC. Features * waterproof and dustproof, suitable for all-weather competition. Small size, built-in capacitor module* Strong current endurance* Powerful built-in BEC output capability* Automatic throttle range calibration, easy to use. ESC parameters can be easily set using the switch* Multiple protection: battery low voltage cut-off protection / overheaty
G**O
a bit noisy but they work great!
I used two of these controllers to drive a pair of 540 brushed motors in my tracker tank. When building a tank drive you need to be able to program the controllers without the brake function. These work well so far.
T**R
Only one of the two works
The first one I installed didn’t work at all. The second one works great.
